Led's
LED DRIVER'S
Gabrielle essence eau de parfum
We can support with Osram Make Led Drivers against order. These electrical devices regulate the power to LED Circuits. These are precisely processed by experts using optimum components and advance resources. These are highly useful and supplied to various sectors. They require no maintenance and provided at competitive market range.
$149.99
Product Information

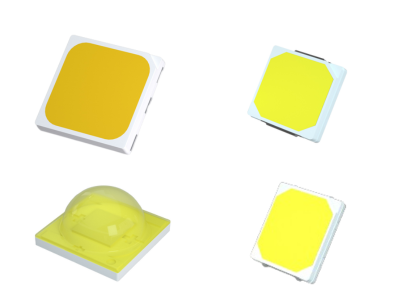

The 2835 LED is a high performance low cost device with high driving currents and good thermal conductivity. 2835 Package stands for (2.8 mm x 3.5 mm) & it’s the ideal choice for all indoor applications like tube lights, Bulbs, profile lights etc. Available in color temperature 2700k to 6500k as well as the current trending color LED’s RED, GREEN, BLUE, Amber , Pink etc.
Features
-
High efficacy
-
Low thermal resistance
-
Compatible with automatic pick and place equipment
-
Compatible with the reflow soldering process
-
Market standard 2835 size
Low power LED’s upto 0.2W available in:
-
CCT White ( 2700K – 6500K )
-
Colors ( RED , BLUE , GREEN , AMBER & PINK)
Available Make:
Product Information
The 2835 package LED is a versatile Device available in multiple Wattages & used for multiple applications. Mid power LED’s range from 0.5W - 1W. Again, an ideal choice for indoor applications. The consumption of lower wattages is huge in the Indian markets.
Applications
-
2 * 2 Panels
-
Coach Lighting
-
DOB Panel
-
Spotlights
2835 0.5W Available in the following Flux Bins In CCT White in 3V Solution ( 2700- 6500K) :
-
60-65 LM
-
65-70 LM
-
68-72 LM
-
70-75 LM
-
72-76 LM
-
80-85 LM
Available Make:
Product Introduction
High Power LED’s are highly efficient & Robust. They are used in Outdoor lighting & can have great thermal conductivity & life These are devices which are 1W & above. 3030, 3535 & 5050 are some of the high power packages
Highlights
-
High Luminous Flux
-
Low Thermal Resistance
-
Robust & Rugged
-
L70 of 54000 hrs & above
Applications
-
LED Street light
-
Highbay
-
Floodlights
-
Architectural lighting
| Package | Make | CCT | CRI | Max Current | Voltage(type) | Wattage |
|---|---|---|---|---|---|---|
| 3030 | Shineon | 3000K -6500K | 70 / 80 | 200 mA | 6V | 1.2 W |
| 3030 | Shineon | 3000K -5700K | 80 | 300 mA | 6V | 2 W |
| 3030 Dome | Osram | 2700K - 5700K | 70 / 90 | 1800 mA | 3V | 5.4 W |
| 5050 | Refond | 3000,5700 & 6500K | 70 | 880 mA | 6V | 5.4 W |
| 5050 | Osram | 3000,4000,5700 & 6500K | 70 | 1050 mA | 6V | 6 W |
Available Make:
